A High-Speed Electric Discharge Machine (HS-EDM) is a cutting-edge CNC EDM machine utilizing high-frequency electrical discharges to precisely remove material from workpieces, particularly hard and challenging materials like tool steels, carbide, and ceramics. HS-EDM machines outpace traditional EDMs, offering superior surface finishes, making them indispensable for producing intricate components such as dies, molds, and medical implants. Mirrordick Group excels in EDM technology, specializing in mirror spark machines, a specialized version of an HD-EDM, for applications in aerospace, automotive, electronics, and more, meeting high precision demands. The precision mirror spark machine is equipped with an ATC electrode library and a network transmission system, enabling customers to achieve intelligent and automated manufacturing.
Table Travel X Y Z | 300 x 210 x 270 to 450 x 350 x 300 mm |
Worktable Size (L x W) | 600 x 400 to 700 x 450 mm |
Liquid Groove Internal size (LxWxH) | 1020 x 600 x 400 to 1050 x 650 x 400 mm |
Material Removal Rate | Copper hit steel 500mm3/min Graphite hit steel 1030mm3/min |
Max Workpiece Weight | 500 to 700 kgs |
Max Electrode Weight | 50 kgs |
Max Working Current | 40 amps |

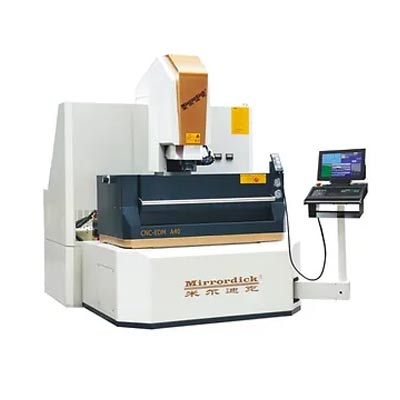

Table Travel X Y Z | 500 x 400 x 300 mm |
Worktable Size (L x W) | 700 x 450 mm |
Liquid Groove Internal size (LxWxH) | 870 x 620 x 350 mm |
Material Removal Rate | Copper hit steel 500mm3/min Graphite hit steel 1030mm3/min |
Max Electrode Weight | 50 kgs |
Max Working Current | 50 amps |

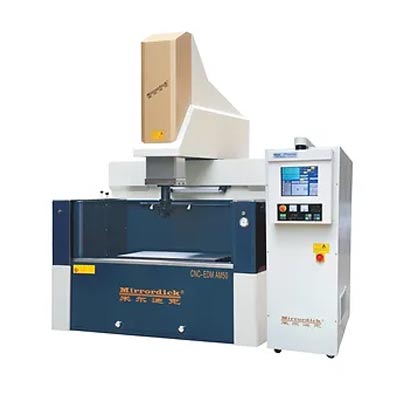

Table Travel X Y Z | 500 x 400 x 350 to 1200 x 600 x 450 mm |
Max workpiece size | 1280 x 800 x 400 to 1800 x 1200 x 650 mm |
Liquid Groove Internal size (LxWxH) | 1370 x 950 x 520 to 2000 x 1300 x 700 mm |
Material Removal Rate | Copper hit steel 500mm3/min Graphite hit steel 1030mm3/min |
Max Electrode Weight | 100 to 200 kgs |
Max Workpiece Weight | 2500 to 5000 kgs |
Max Working Current | 50 amps |

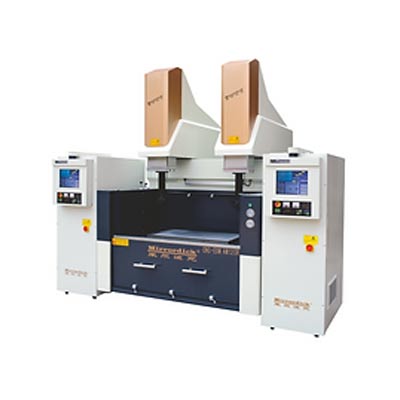

Table Travel X Y Z (Double Head) | 700 x 500 x 400 to 2400 x 900 x 600 mm |
Table Travel X Y Z (Single Head) | 1000 x 500 x 400 to 3000 x 900 x 600 mm |
Liquid Groove Internal size (LxWxH) | 2000 x 1100 x 600 to 4500 x 1800 x 650 mm |
Material Removal Rate | Copper hit steel 500mm3/min Graphite hit steel 1030mm3/min |
Max Electrode Weight | 200 to 450 kgs – Single Head Electrode |
Max Workpiece Weight | 4500 to 28000 kgs |
Max Working Current | 50/100 amps |
With over two decades of experience, RAY Mechatronics is an authorized distributor in India, specializing in the electrical discharge machining (EDM) industry, particularly renowned for Mirrordick EDM machines. Our extensive product range includes small EDM machines, tailored to diverse machining requirements, with a strong emphasis on high-speed operations. RAY Mechatronics also offers a variety of automation solutions, with a well-established reputation for the exceptional quality and reliability of their EDM machines. Whether you have inquiries or encounter issues with your EDM machine, RAY Mechatronics stands ready to provide assistance and support.
